West and East Penn — Madeline Alves

West and East Penn

Type: Revit, CAD, Illustrator

Professional: ICRAVE

Location: 1 Penn Plaza New York, NY 10019

Date: Fall 2021

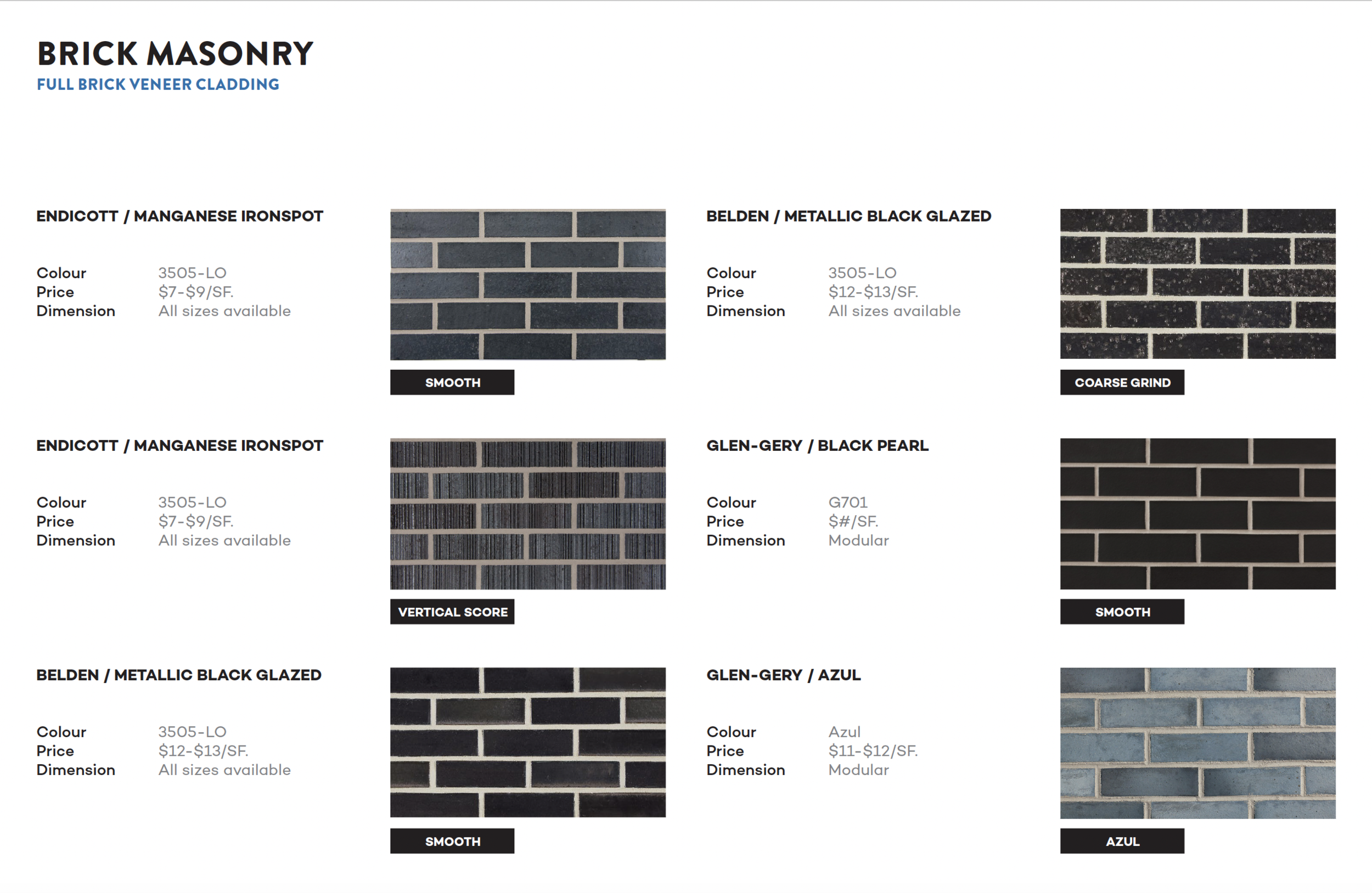

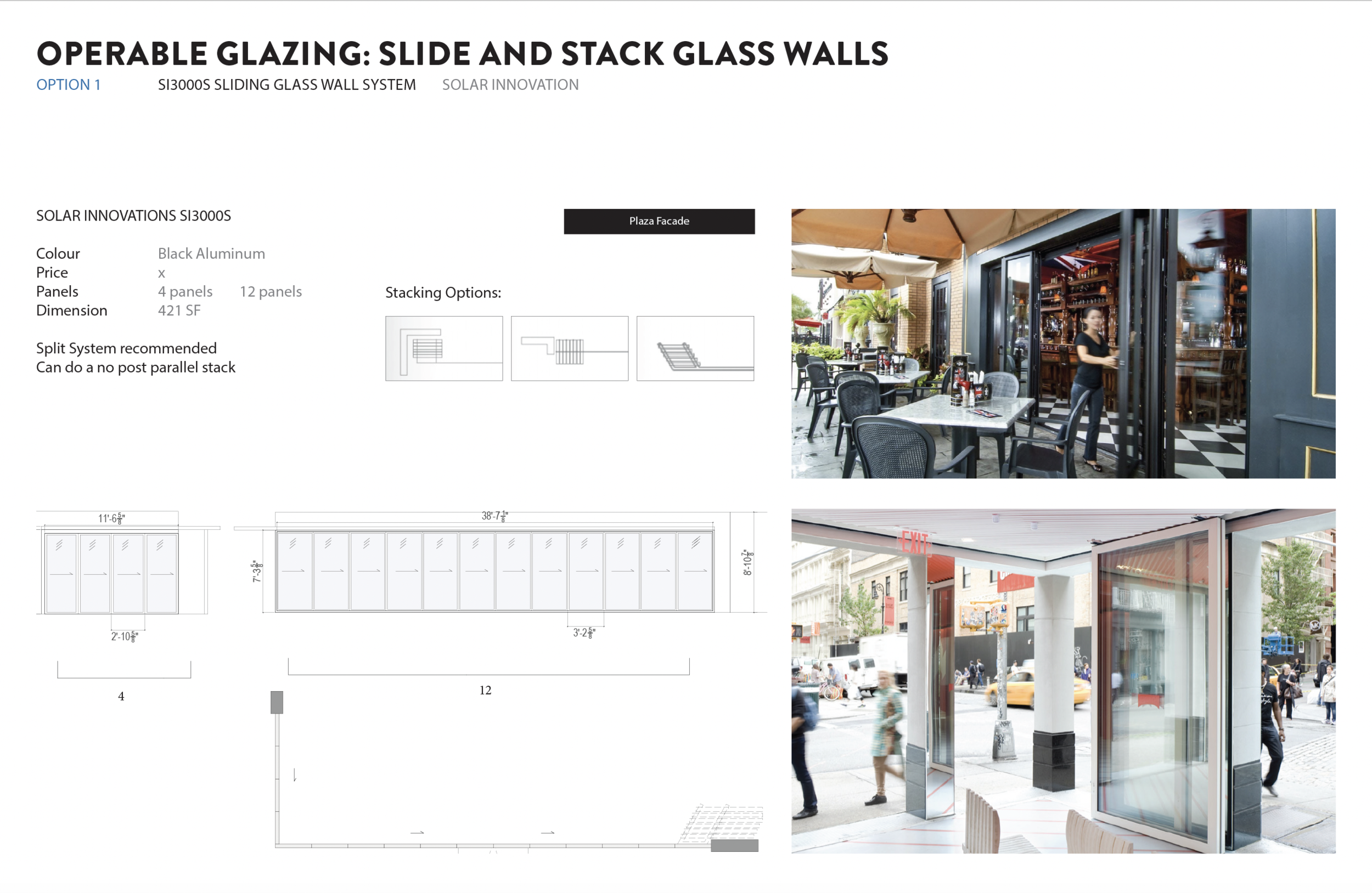

While at ICRAVE, I worked hand in hand with Vornado to develop what the new Penn Station retail area will look like. This consisted of looking into and pricing operable glazing for the proposed tenants and the brick materials to achieve the intent. These presentations were made a presented as decision making tools. I also drew elevations of the Penn West building to hand over to the construction team. These were completed with CAD.
